Tow Bar Bolt for Aviation Products Tailwheel
Tow Bar Bolt for Aviation Products Tailwheel
4 in stock
Couldn't load pickup availability
NOTE: this item ONLY fits Aviation Products tailwheels with a 1/2" axle bolt (typically this is the two-armed fork varieties and not the single-armed forks, which use a 5/8" axle).

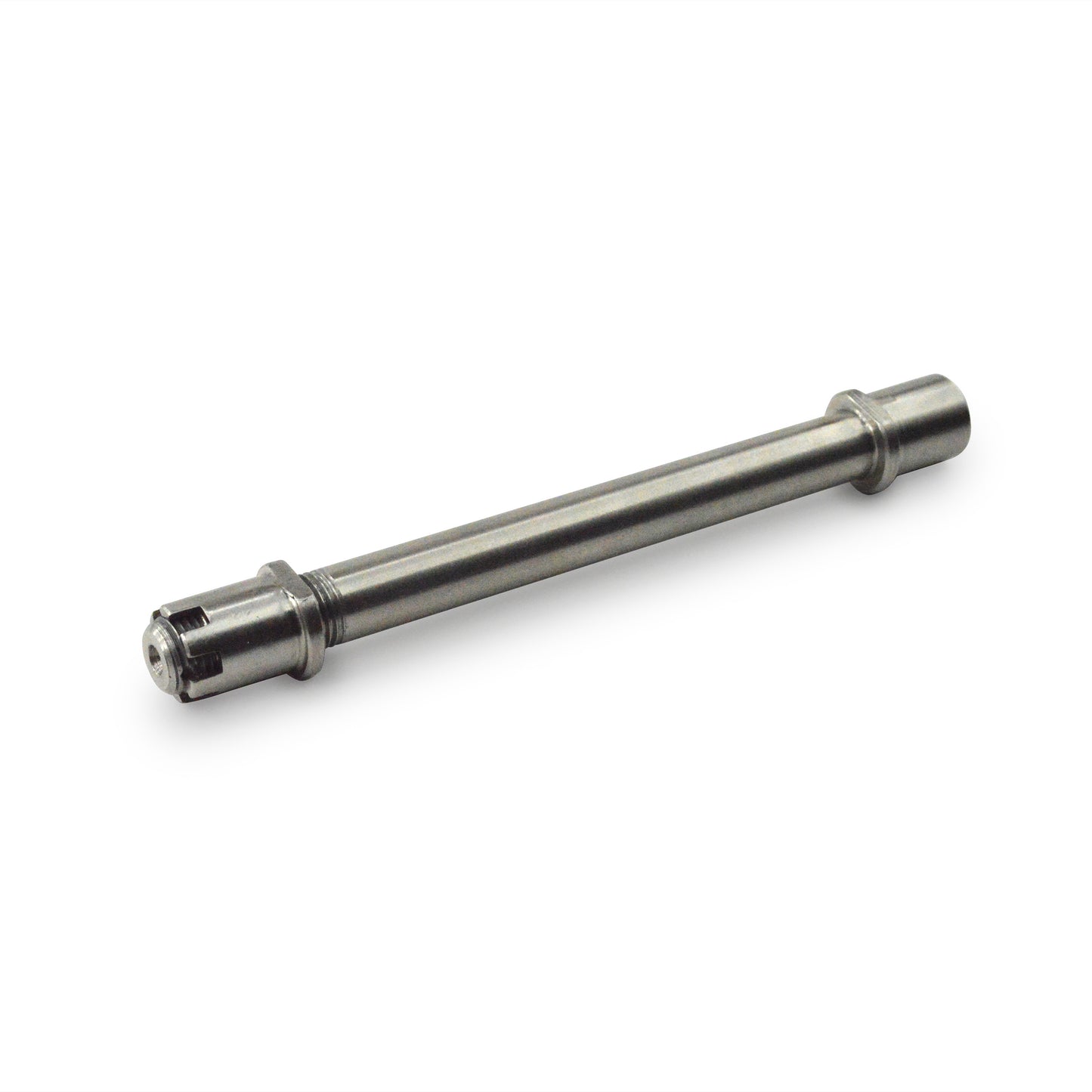

This specially-machined bolt replaces the axle bolt of your tailwheel to create an attach point for a tow bar that won’t risk scratching up your tailwheel. Machined from stainless steel. Tow bar attach is 5/8″ diameter.
FAQs
Q: Does the Bogi Bar Aircraft Tow Bar fit the the tow bar bolt without modification? (5/8th inch diameter)
A: Yes, the tow bar bolt was designed with the Bogi Bar and many other commercially available and homebuilt tow bars in mind. The lugs on the tow bar bolt are 5/8″ inner diameter.
Q: What are the dimensions of this bolt?
A: See below for dimensions of the two variations of this bolt.
Tow Bar Bolt for Aviation Products Fork
- Axle diameter: 1/2″
- Lug Diameter: 5/8″
- Overall bolt length: 6-1/4″
- Axle length between heads (minimum): 4-3/16″
- Axle length between heads (maximum): 4-1/2"
Share
Bolt itself is fine, only small issue is that the end diameter is a perfect fit for the bogi bar tow bar except for the cotter pin that is installed to retain the removable machined nut. The cotter pin protrudes enough to prevent the bogi bar from sliding over the end. I put a smaller cotter pin in which works but plan to just safety wire the bolt end which should be neater.
