Tow Bar Bolt

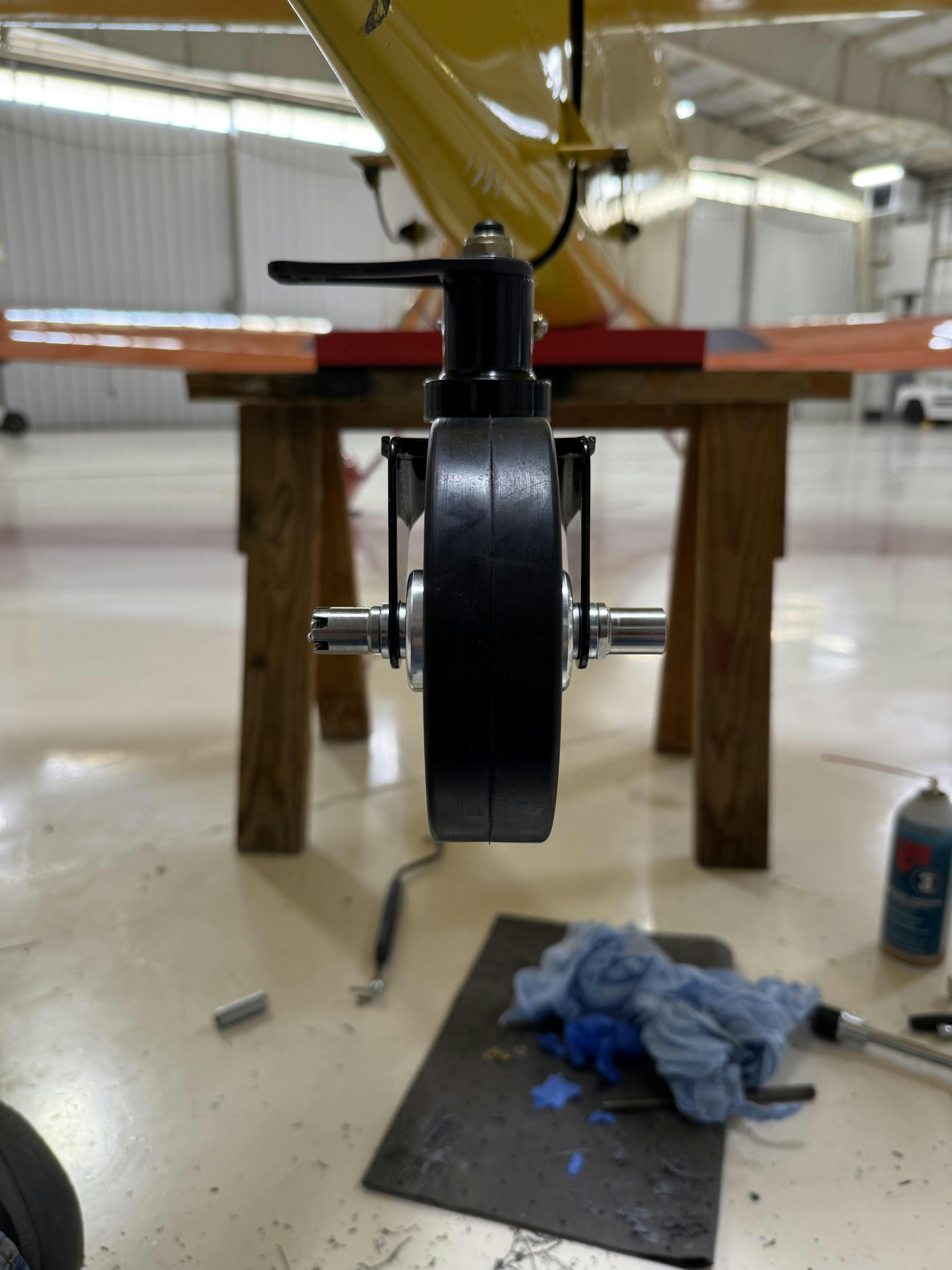

This specially-machined bolt replaces the axle bolt of your tailwheel to create an attach point for a tow bar that won’t risk scratching up your tailwheel. Machined from stainless steel. Tow bar attach is 5/8″ diameter.

FAQs

Q: Does the Bogi Bar Aircraft Tow Bar fit the the tow bar bolt without modification? (5/8th inch diameter)

A: Yes, the tow bar bolt was designed with the Bogi Bar and many other commercially available and homebuilt tow bars in mind. The lugs on the tow bar bolt are 5/8″ diameter.

Q: What are the dimensions of this bolt?

A: See below for dimensions of the two variations of this bolt.

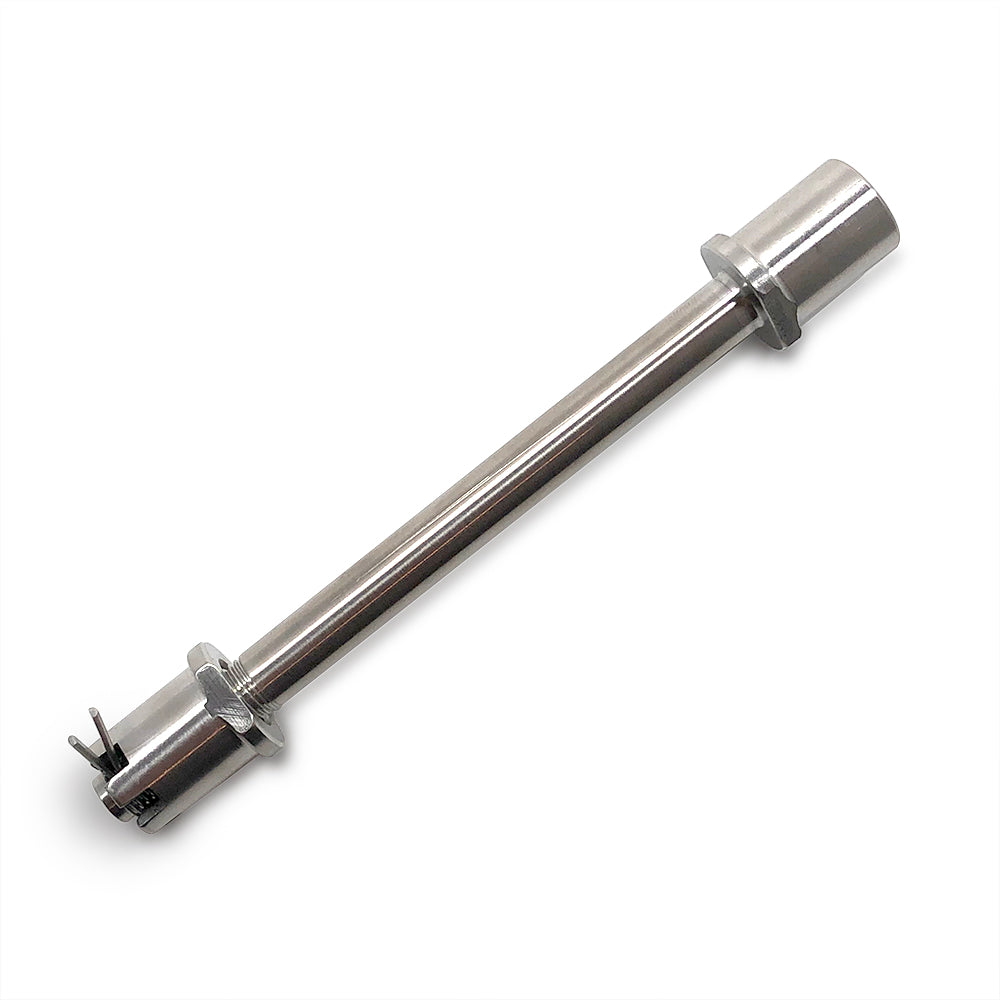

Tow Bar Bolt for Bell and Condor2 Forks

• Axle diameter: 3/8″
• Lug Diameter: 5/8″
• Overall bolt length: 5-3/8″
• Axle length between heads (minimum): 3-1/4″
• Axle length between heads (maximum): 3-5/8″

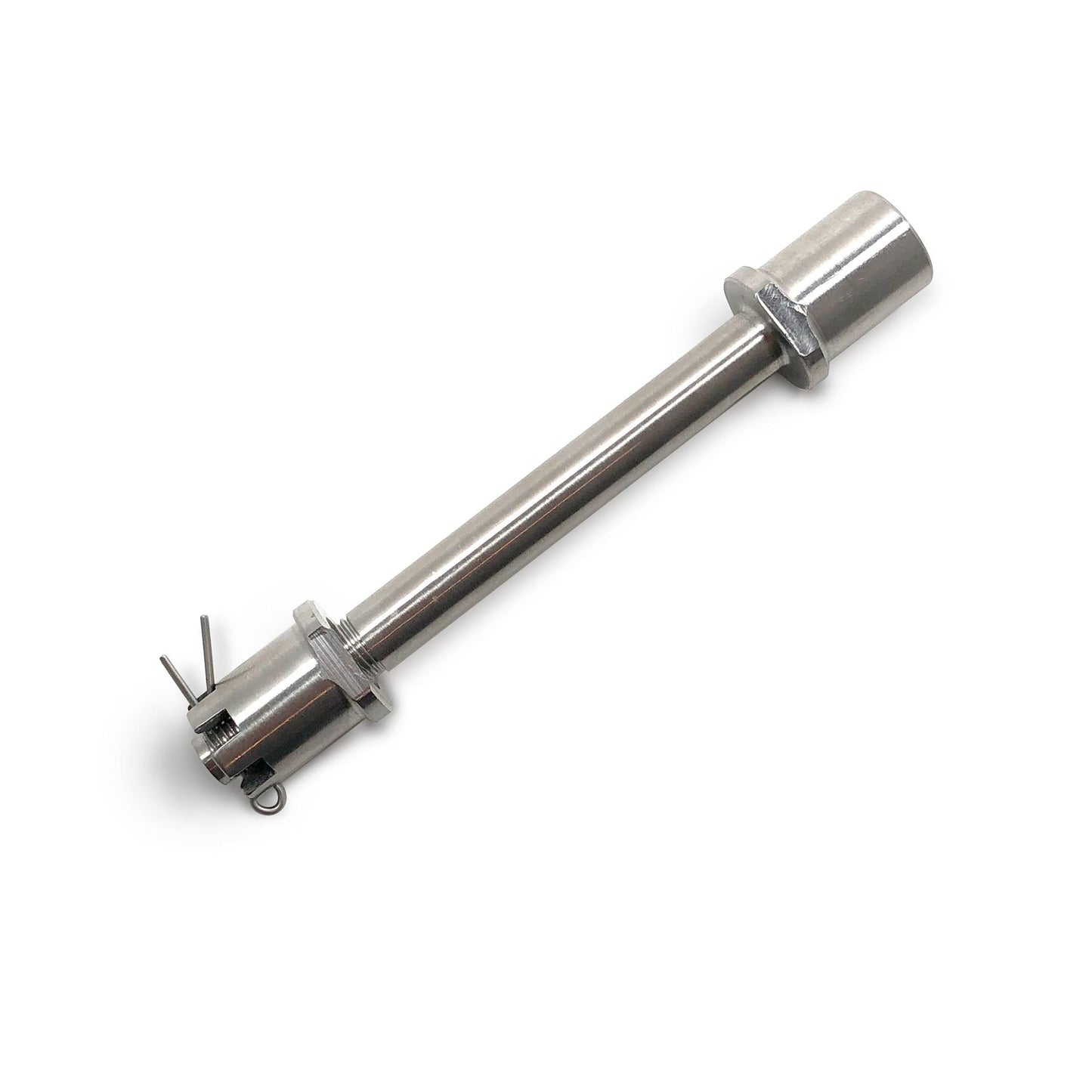

Tow Bar Bolt for Screaming Eagle, JDAir and Standard forks

• Axle diameter: 3/8″
• Lug Diameter: 5/8″
• Overall bolt length: 4-11/16″
• Axle length between heads (minimum): 2-1/2″
• Axle length between heads (maximum): 2-7/8″
