"The Works" Flyleds Wingtip Lighting Kit
"The Works" Flyleds Wingtip Lighting Kit
In stock
Couldn't load pickup availability

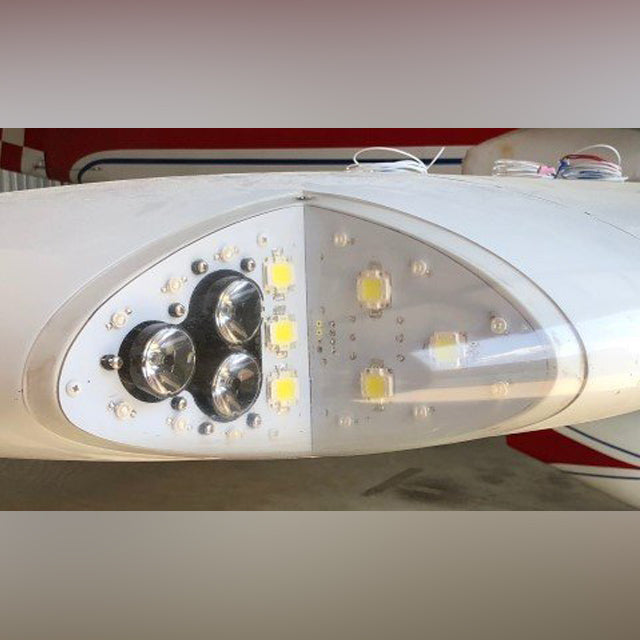

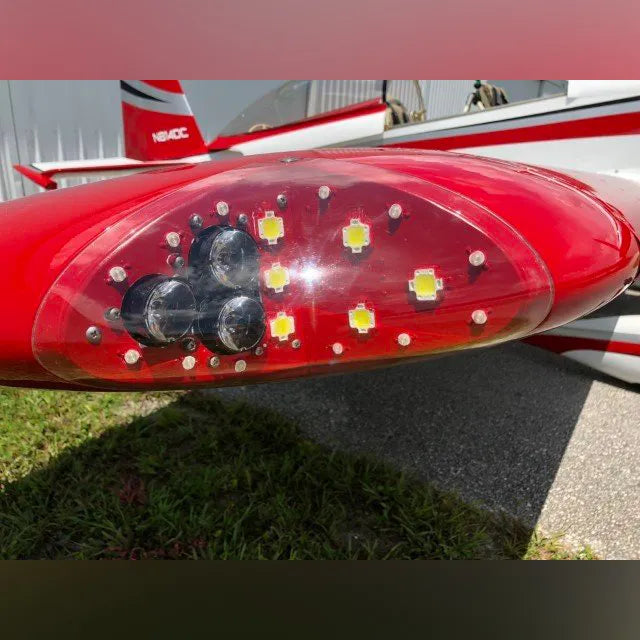

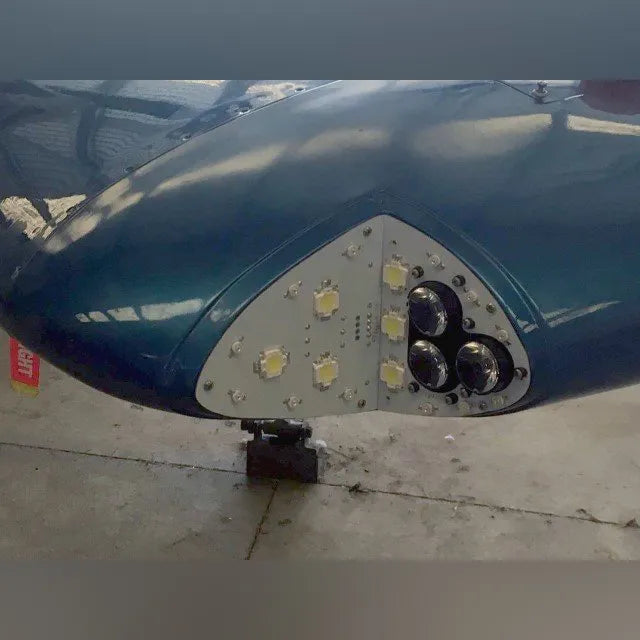

If you're looking for top-quality LED aircraft lighting at a price that cannot be beaten, look no further. Flyleds "The Works" kit is a DIY solder-together kit that puts everything you need in the wingtips... nav lights, strobe lights, landing lights, and taxi lights.
Ever since we launched The Original Flyleds kit we received a constant stream of emails asking "Do you do landing lights as well?" We held off for a long time because there were some great products already out there, but with the challenge duly set we spent a year researching and evaluating our options and designing the spotlights to come up with The Works lights. We couldn't be more proud of the results, and hundreds of kits later, our customers are in agreement!
Our landing lights use quality Cree LEDs producing a total minimum of 7200 lumens of light. Rather than using simple reflectors, we use collimating lenses which gather all of the light from the LED and make a tight beam with very little spill. That means more photons are being thrown where it's needed... waaay out front and center!
For simplicity, the LEDs are driven with a linear constant current power supply, rather than a switching-type supply. The result: no radio or intercom noise, ever. We haven't suppressed the noise; there isn't any being made to start with!
Need taxi lights as well? You can also wire and aim one of the spotlights in each wingtip independently from the others for taxiing. Perfect for taildraggers! The new "The Works" controller board can also turn on the strobe LEDs continuously so you get an additional flood of light off the ends of your wingtips. This can help you improve your peripheral vision and illuminate the taxiway edges and obstructions.
The controller board also takes care of wig-wagging (flashing) your landing lights. Even if you're mostly a daytime VFR flyer, by wig-wagging your lights on every flight you will be seen coming for miles by both human and feathered pilots.
"The Works" lighting kit includes:
- Red and green position/nav lighting (both wings)
- Strobe lights (both wings)
- Landing lights (both wings)
- Taxi/Flood lights (both wings)
- WigWag function built-in.
Match "The Works" kit with one of our tail strobe options and you're fully covered.
Add Soldering: $150
Add Spotlight Assembly: $30
Share
I installed the Works kit along with this tail light on my RV-10 and love it. This is super bright and draws very little power. No noise on the radio. Buying another set for the RV-8. There is currently no better option than Flyleds!
Well packaged and very nice looking. Can’t wait to get it installed.
This is the second one of these I’ve installed, although this is the first standalone model. The install is very easy and if you have the wires in place already, it shouldn’t take more than a few minutes. Two 18 gage wires running from individual switches, and one small wire from the light to a local ground back near the light. The light is extremely bright and doesn’t make any noise in my headset. When you install the light you may have to open up the hole in the tail fairing on the left side where a couple wires exits the fixture. Easily done in about 30 seconds with a 1/8” round file. This opening is covered by the flange on the fixture when installed.
i bought the works kit and was very pleased with how it went together. I managed to mess up one of the LEDs and it was promptly replaced at no cost. The lights are intense and look good.
I bought this to use with the wing Nav and strobe kit. All works great from the first time I turned everything on. I would highly recommend it.
