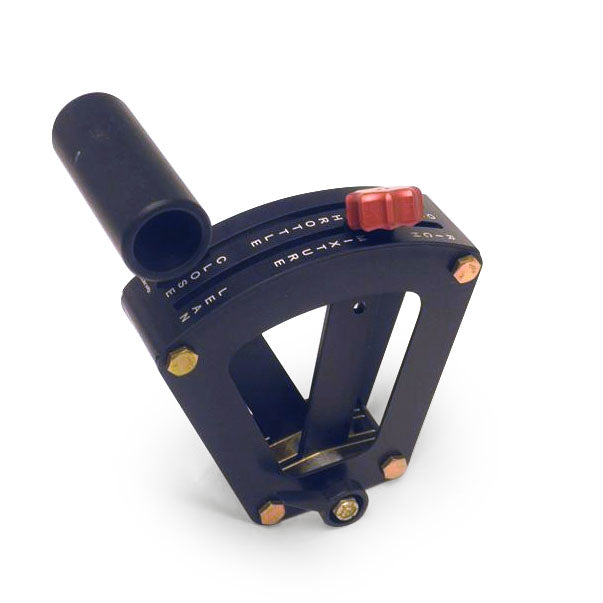

Side Mount Curve Top 2 Lever Quadrant: Throttle-Mixture

DJM’s quadrants are made from aircraft quality anodized aluminum for long life and corrosion resistance.

Brass friction plates are adjustable to fit individual preferences. Black anodized top plates are machined and engraved on a CNC mill to exact tolerances for an excellent finish. Side plates are laser cut ensuring a perfect fit and feel. All hardware used meets AN standards.

Note: All throttle quadrants require an AN665-21R clevis with an AN393-11 clevis pin.

Quad dimensions

• Top plate length (front to back): 4.75”
• Top plate width (less hardware): 1.46″
• Top plate to bottom of pivot: 4.65”
• Cable travel length: 2.25″
