Non Split Wire Conduit
Non Split Wire Conduit
Couldn't load pickup availability
This sleeving protects wires and cables against abrasion or crushing. High-temperature variants have a heat resistance range of -40° to 300° F. High temp wire conduit is ideal for areas where high heat exists.

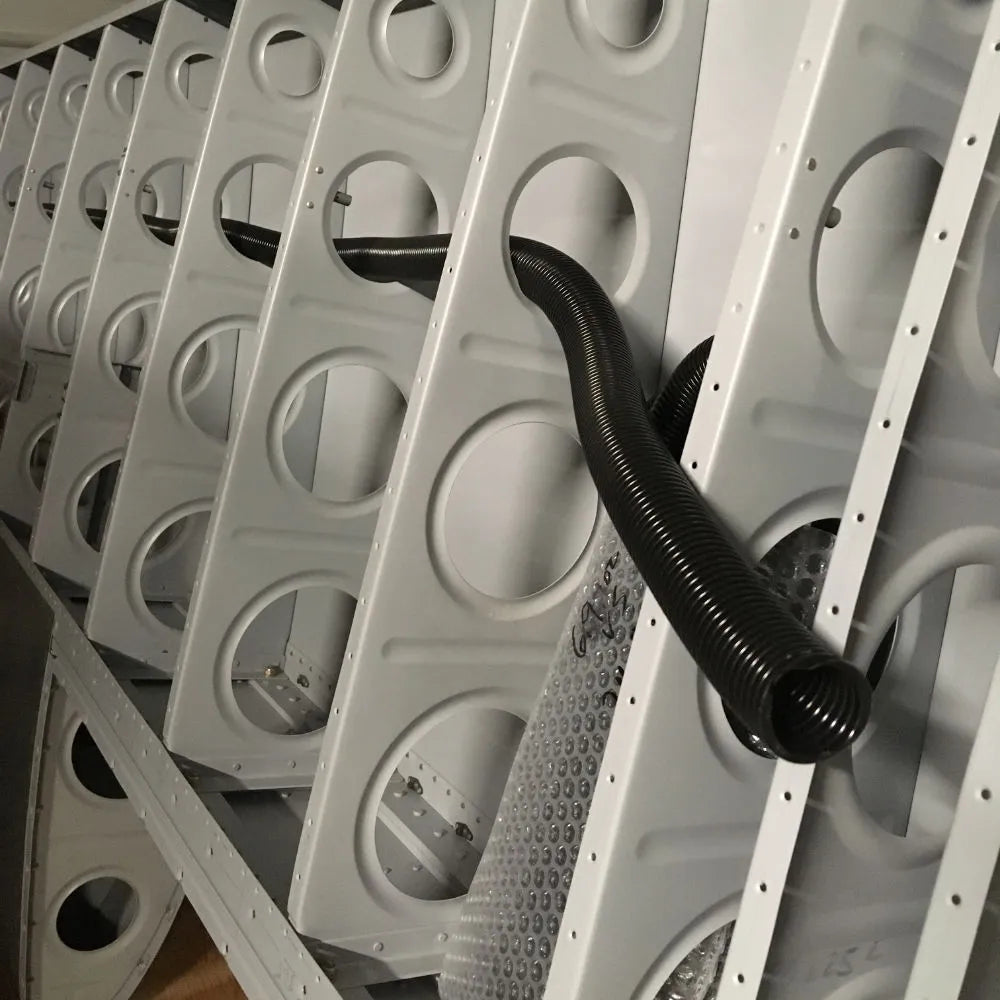

Order by the running foot. Ideally suited for wire runs beneath floorboards or through the wing.
Lightweight – only 7.5 oz. per 10′ piece of 1″ ID loom. The same length of 1″ PVC pipe weighs 2 1/2 pounds!
All high-temperature non-split loom is distinctly marked with a grey stripe running the entire length. High-Temperature sleeve operating range: -40° to 300° F, -40° to 149° C.
Quality control throughout its extrusion allows uniform thickness for the entire run length.
Available in multiple sizes; 1″ ID allows for multiple wires and connectors to pass easily. Can be used for air ducts, blast tubes, and many other uses.
Inside/Outside diameters by size:
| ID | OD (approx) |
| 3/8 | 0.495 |
| 1/2 | 0.682 |
| 3/4 | 0.965 |
| 1 | 1.257 |
