Newton SPRL V1 Fuel Selector Valve

Get a premium quality fuel selector valve for about half the price of the competition.

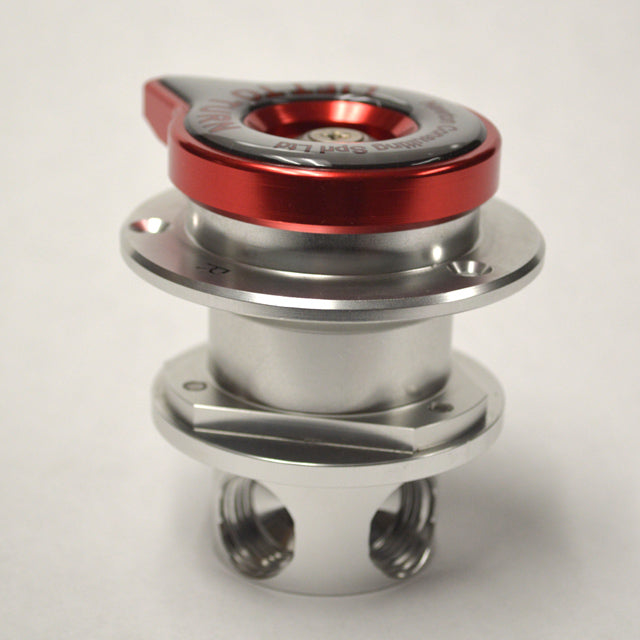

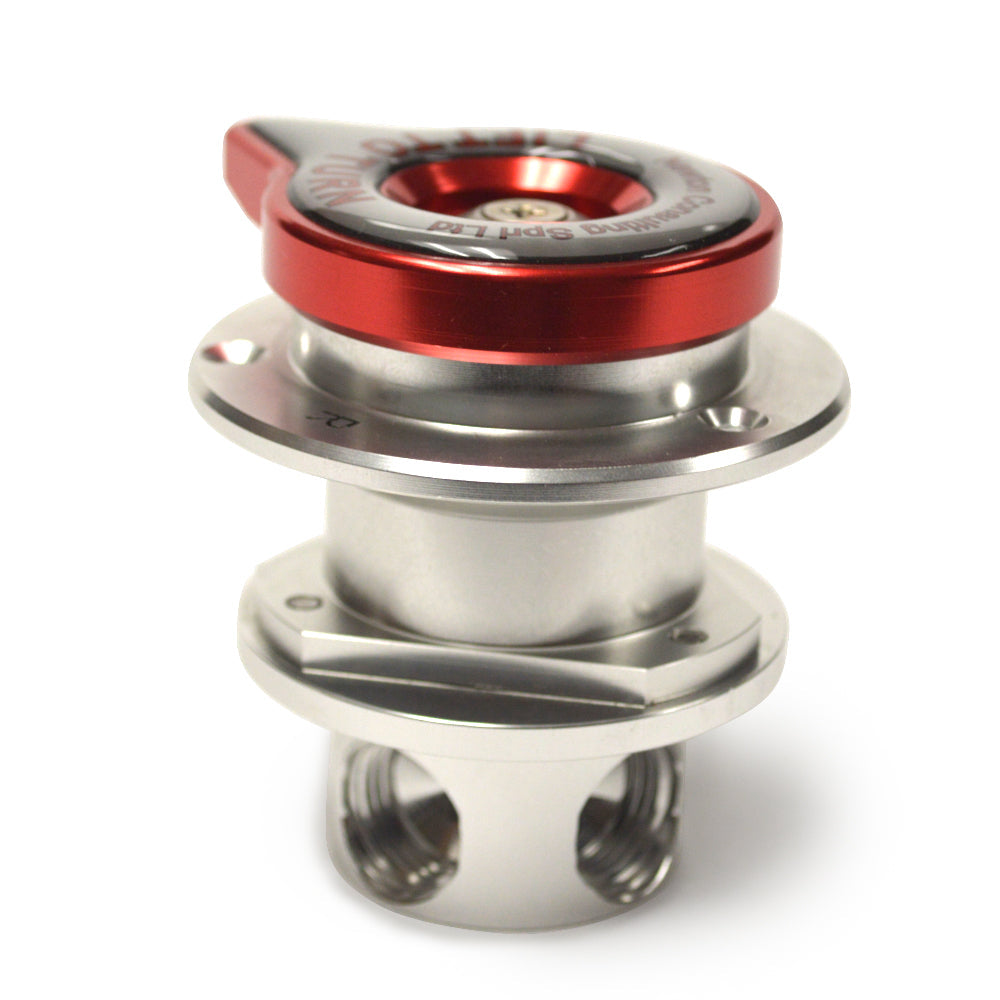

The SPRL-V1 is a three-/four-way fuel selector offering left-off-right in the three-way version and left-off-right-both in the four-way version. The V1 does not feature return lines for fuel.

There are 90 degrees between selections and the absence of a lower fitting reduces the depth required.

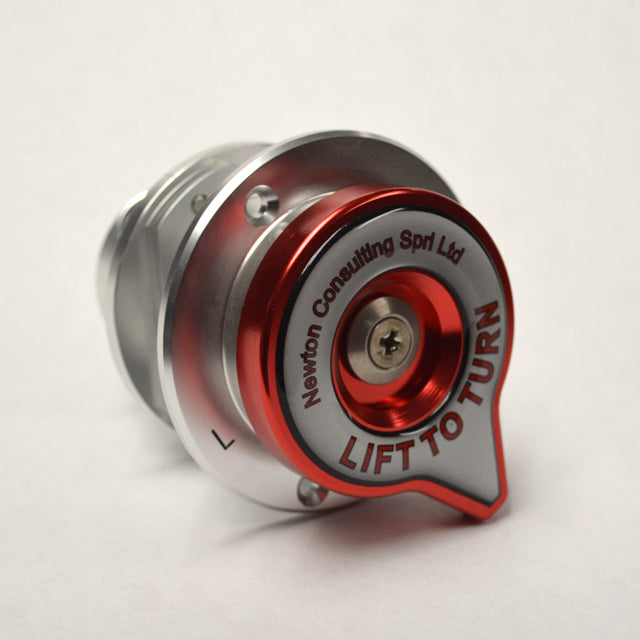

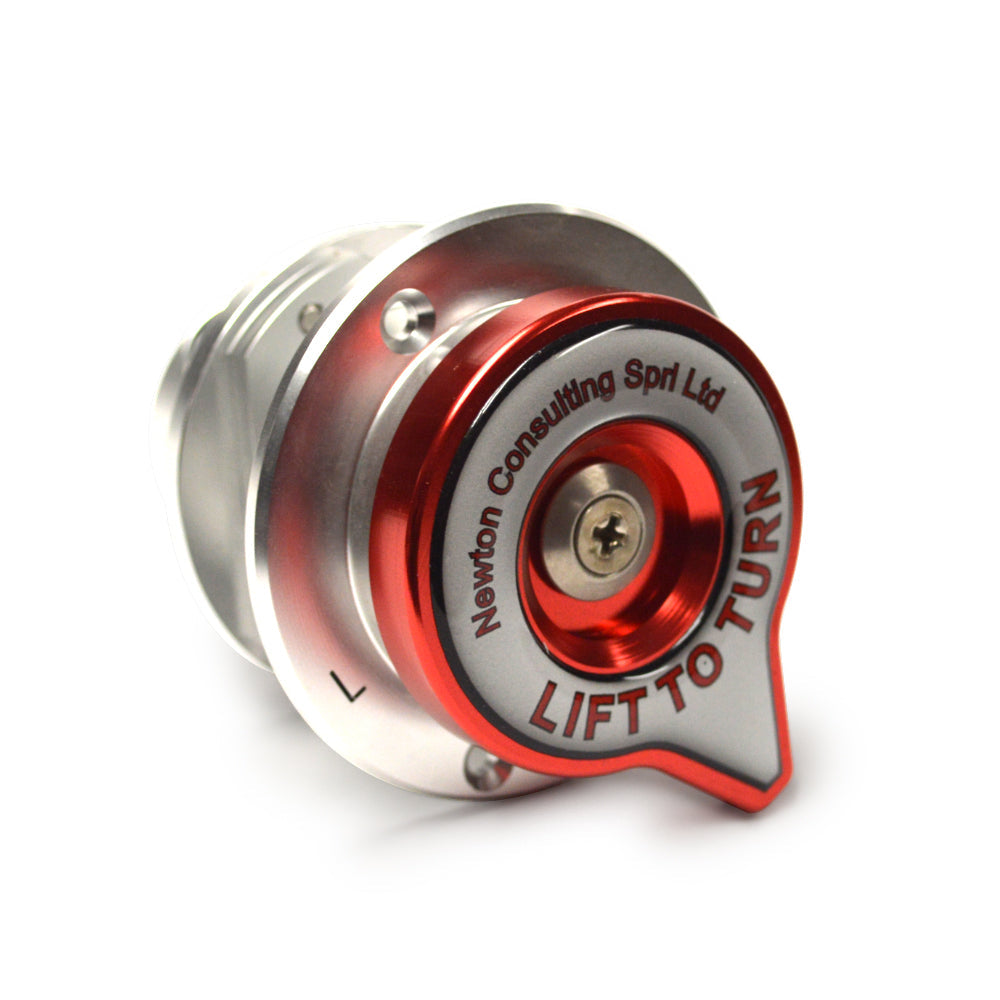

Engineered and made in the United Kingdom, the Newton fuel selectors have several major advantages. Ceramic disks have no soft moving/rubbing seals to wear out, unlike other valves, and give an “indefinite” service life with a very smooth light action. The lift and turn selector is instinctive, secure, and easier to use than the complex ‘lift button’ type. The locking detents avoid accidental movements. The fixings match most installations, and the internal ports prevent cross-feeds. Male AN fittings enable you to plumb straight into the fuel system with no extra fittings to buy.

The lightweight alloy construction is anodized for protection; the Viton o-ring seals are suitable for all current fuels. Tests on this product demonstrate long service life, showing valves holding 6 bar after 100,000 movements.

This item is for use in experimental aircraft only. Fittings must be purchased separately.

FAR 23

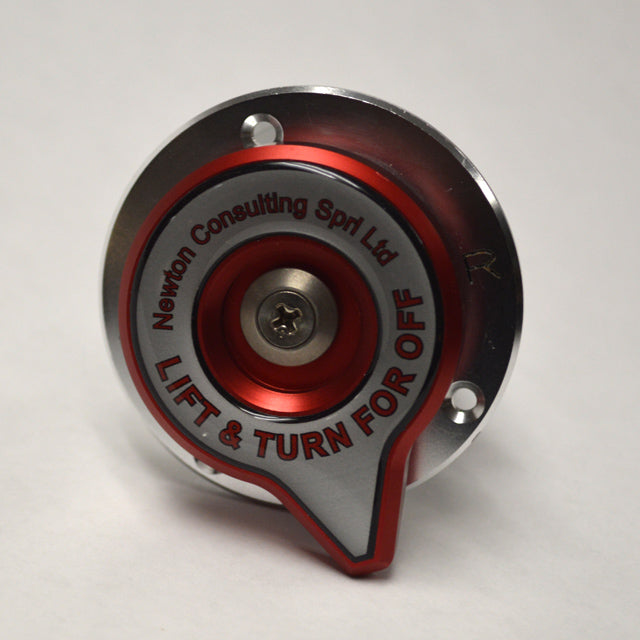

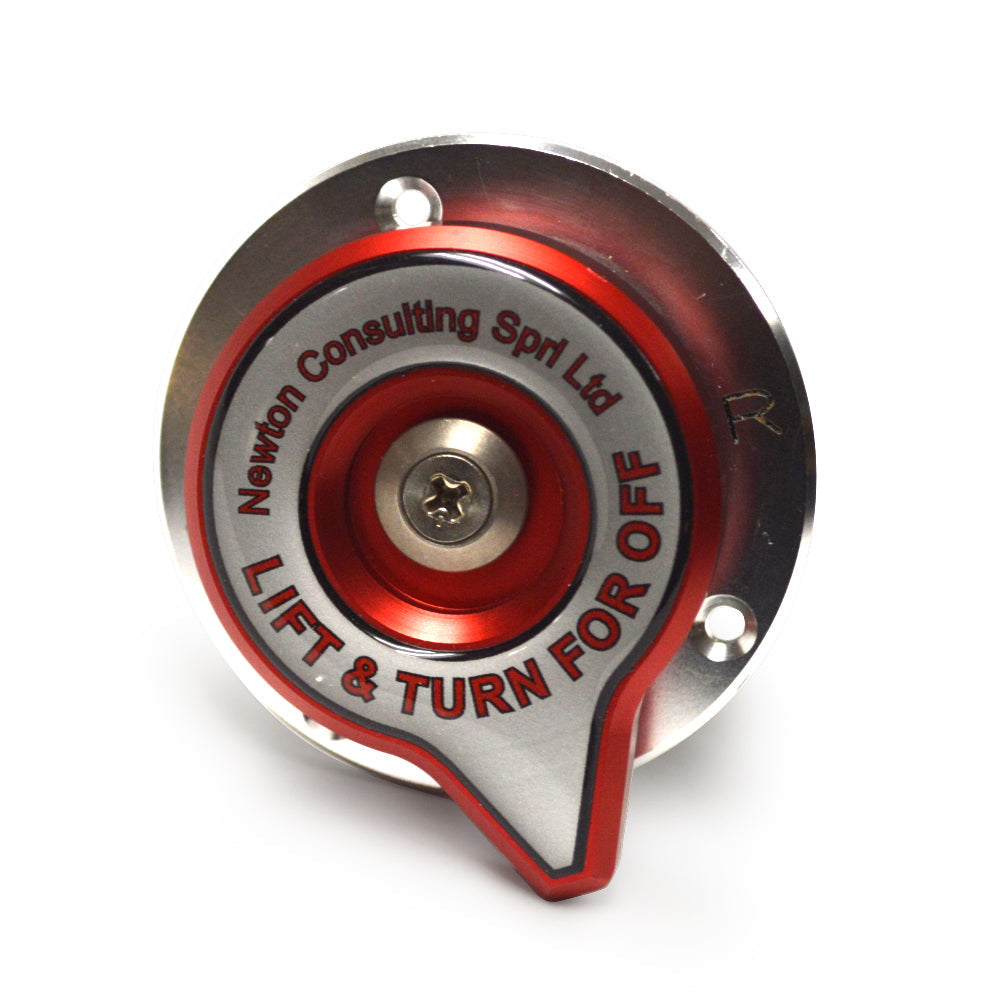

The SPRL Valves, as designed, have the same "lift-and-turn" detent position at each position. However, there is a requirement in FAR 23 whereby the fuel valve must be turned from OFF to an ON selection simply by turning it. In other words, the FAR-conforming valves do not have to be lifted to turn from OFF to either tank. Additionally, it should not be possible to turn it from an ON position to OFF without a detent. We offer both the standard fuel valve and an identical unit with a selector mechanism conforming to this regulation.

Three-way vs. Four-way

Three-way valves have LEFT-OFF-RIGHT detent positions.

Four-way valves have an additional detent position at 12 o'clock to feed from both tanks.
