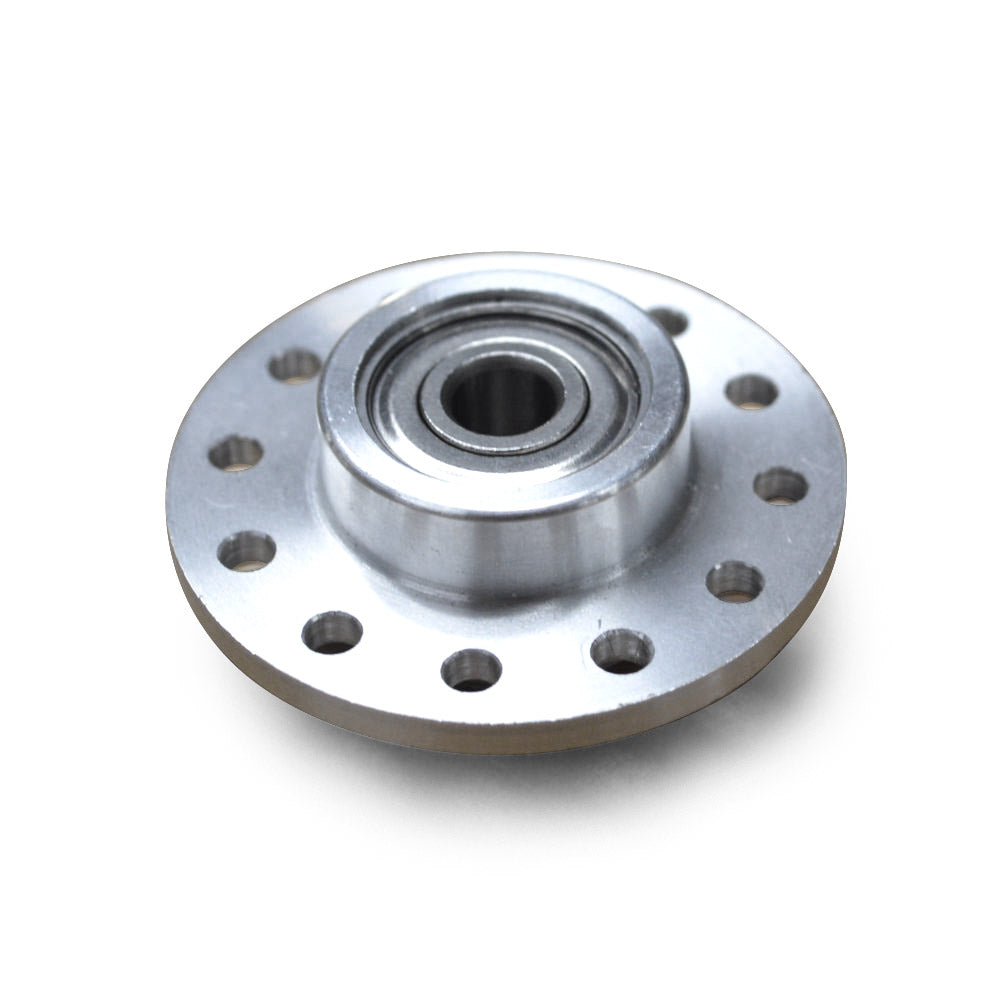

Bellcrank Flange Bearing

21Flange bearing. Commonly used for various control bellcranks throughout many experimental aircraft. CNC machined from aluminum billet, with dual stainless steel, shielded, dry-lubed bearings for long life.

Replaces Van’s VA-146, or other BC4W10, for experimental use only.

• 2011-T3 aluminum construction
• Dual shielded stainless steel ball bearings, deep groove type, dynamic load rating: 525 LBS * static load rating: 199 LBS
• Flange thickness 0.100″
• Flange O.D. 1.625″
• Hub diameter 0.870″
• Center hole dia. 0.250″
• Height 0.625/.630″
• Hole Pattern 1.312″ between centers w/ 12 holes
• Hole diameter 0.128″
